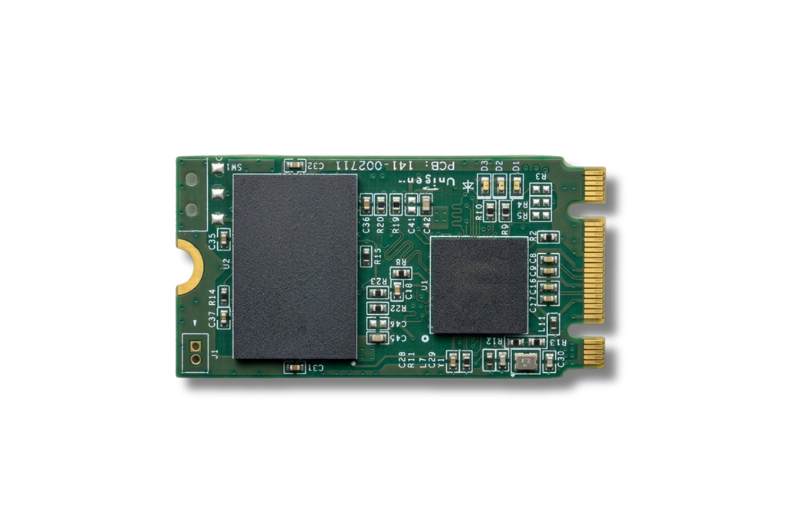

The Unigen Hood Series M.2 2242 SATA III SSD is specifically engineered for high-endurance storage and embedded computing. Designed for environments where reliability, performance, and Total Cost of Ownership (TCO) are critical, the Hood series provides a rugged storage solution in a compact form factor. Available in capacities from 32GB to 256GB, it is the ideal choice for mission-critical boot drives and industrial applications.
Features
- pSLC
- 32GB/ 64GB/ 128GB/ 256GB
- Provides up to 4PBW of endurance
- Operating Temperature 0℃ to 70℃
- Sequential Read: Up to 375 MB/s
- Sequential Write: Up to 240 MB/s
- Security: FIPS 197, AES-256, SHA-256, Secure Boot, TCG Opal
Benefits
Rugged Performance
The Hood series delivers reliable SATA III performance within the ultra-compact M.2 2242 footprint. This makes it an excellent fit for space-constrained servers, IoT gateways, and embedded devices that require a dedicated, high-reliability boot or logging drive.
High Endurance
By utilizing advanced 3D TLC NAND converted to pSLC (pseudo-SLC) mode, the Hood family achieves extraordinary longevity. Supporting up to 30,000 P/E cycles, the 256GB model delivers an impressive endurance rating of up to 4 PBW (Petabytes Written).
Superior TCO and Energy Efficiency
The Hood family leverages a modern DRAMless controller and high-volume 3D NAND technology to offer a significantly lower TCO than legacy SLC/MLC architectures. It is highly energy-efficient, with a maximum power draw of just 1.4W and a sleep mode that sips under 50mW, ensuring minimal thermal impact on your system.
Enterprise-Grade Security
Performant AES-128 and AES-256 with CBC and XTS modes, the Hood Boot drive is FIPS 197 compliant. Additionally, it has a SHA-256 hashing engine, random number generator, and Secure-Boot features with TCG Opal Support.
Specifications
| Appearance | ||
| Dimensions | 42(L) × 22(W) ×3.5(H) mm | |
| Weight | 3 grams | |
| Form Factor | M.2 2242 | |
| Interface | ||
| Interface | SATA III | |
| Storage | ||
| Flash Type | pSLC | |
| Capacity | 32GB/ 64GB/ 128BG/ 256GB | |
| Operating Environment | ||
| Operating Temperature | 0℃ to 70℃ (Operating) | |
| Storage Temperature | -40℃ to 85℃ (Non-Operating) | |
| Humidity | 5% to 95%, non-condensing | |
| Shock | Operating: 1,500G. Duration 0.5ms, half sine wave | |
| Vibration | 20G. Peak, 10 ~ 20KHz with 3 axis | |
| Power | ||
| Power Requirement | <1.4W | |
| Power Consumption (Idle) | < 0.2W | |
| Performance | ||
| Sequential Read/ Write (max.) | Read: up to 375 MB/S ; Write: up to 240 MB/S | |
| 4K Random Read/Write (IOPS max.) | Read: up to 4245 IOPS; Write; up to 3170 IOPS | |
| Mean Time Between Failures (MTBF) | 8,853,055 power-on hours | |
| Technology | ||
| Power Loss Protection (PLP) | Software | |
| DRAM Cache | No | |
| Error Correction Codes | Up to 66 bits correctable per 512-bytes sector (BCH) |
Ordering Information
| Part Number | Capacity |
| UBM3H0432H0CNP1-FKU-UGN | 32GB |
| UBM3H0464H0CNP1-HKU-UGN | 64GB |
| UBM3H04128HCNP1-IKU-UGN | 128GB |
| UBM3H04256HCNP1-JKU-UGN | 256GB |
