Unigen Sunflower SSDs offer low power and low latency Quality of Service (QoS) with an advanced PCIe Gen4.0 NVMe™ 1.4 enterprise controller that unlocks sequential read/write speeds of up to 7341/4695 MB/s on a space efficient U.2 SSD. Supporting up to 1 Drive Write Per Day (DWPD) endurance for all capacities, these SSDs are built to last and meet the most stringent power, performance, and thermal requirements for enterprise environments.
Sunflower
Features
- 1.92TB/ 3.84TB/ 7.68TB
- TLC
- U.2 for content delivery networks
- Read: up to 7341 MB/S; Write: up to 4695 MB/S
- Operating Temperature 0℃ to 70℃
Specifications

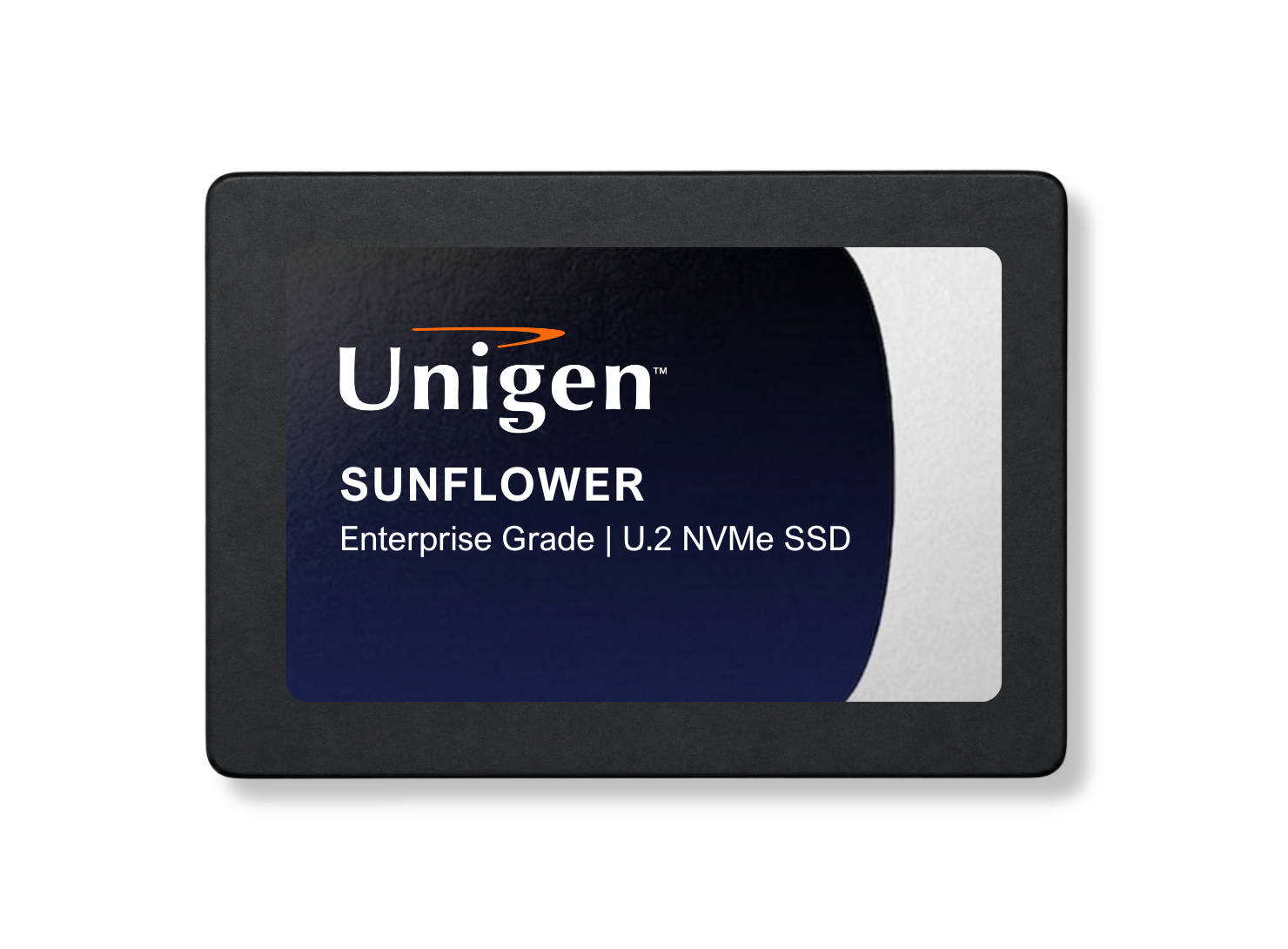

| Appearance | ||
| Dimensions | 69.85 (W), 100 (L), 7(H) mm | |
| Form Factor | U.2 7mm | |
| Interface | ||
| Interface | PCIe Gen4.0 | |
| Storage | ||
| Flash Type | TLC | |
| Capacity | 1.92TB/ 3.84TB/ 7.68TB | |
| Operating Environment | ||
| Operating Temperature | 0ºC to 70ºC | |
| Storage Temperature | -40ºC to 85ºC | |
| Humidity | Non-operating humidity: 5% to 90% | |
| Shock | 1500G | |
| Vibration | 20G | |
| Power | ||
| Power Consumption (Active Write) | 14W | |
| Power Consumption (Idle) | 3.05W | |
| Performance | ||
| Sequential Read/ Write (max.) | Sequential Read @ 7.68TB: 7341 MB/S ; Sequential Write @ 7.68TB: 4695 MB/S | |
| 128K Random Read/Write (IOPS max.) | 853K/ 838K | |
| Mean Time Between Failures (MTBF) | 2.5 million hours | |
| Technology | ||
| Power Loss Protection (PLP) | No | |
| DRAM Cache | Yes | |
| Error Correction Codes | Yes | |
Ordering Information
| Part Number | Capacity |
| UBP4I0301T9ENT1-JKJ1-UGN | 1.92TB |
| UBP4I0303T8ENT1-JKJ1-UGN | 3.84TB |
| UBP4I0307T6ENT1-JKJ1-UGN | 7.68TB |
