The Oncilla high-performance solution pairs the latest advanced PCIe Gen 4.0 SSD controller with high endurance eTLC NAND Flash to deliver the fastest M.2 2280 to the performance market. Capable of 7400MB/s Sequential Read performance, the Oncilla is perfect for workstation media applications where transferring large video files must be as fast as possible to process large datasets during VFX (Visual Effects) and post processing operations for Hollywood.

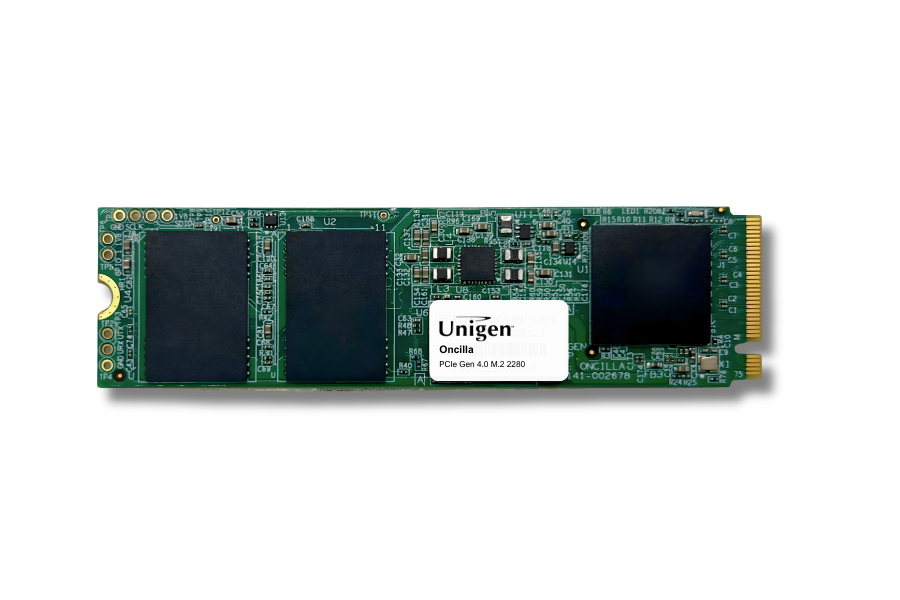

Oncilla
Features
- Four ARM Cortex-R5 CPU cores, compliant with ARMv7-R architecture with Thumb-2 support
- 8 NAND CH x 4CE, support ONFI 4.1 and Toggle 4.0 up to 1066MT/s
- PCIe Gen4 x4 at 16GT/s
- NVM Express Specification 1.4
- Multiple security schemes: TCG Opal 2.01, AES 128/256, China state key SM 2/3/4, SHA 3-256,RSA4096
- Enhanced data integrity protection: Programmable RAID, SRAM/ TCM/ Cache/ECC + LDPC ECC, HMB data integrity protection, End-to-End data protection, CRC
Specifications
| Appearance | ||
| Weight | 10g | |
| Form Factor | 2280 | |
| Interface | ||
| Interface | NVMe PCIe Gen 4 | |
| Storage | ||
| Flash Type | 3D TLC NAND | |
| Capacity | 480GB/ 960GB/ 1.92TB/ 3.84TB | |
| Operating Environment | ||
| Operating Environment | 0°C to 70°C (C-Temp) | |
| Storage Temperature | -40°C to 85°C | |
| Operating Humidity | 5% to 95%, non-condensing | |
| Shock | 1,5000G. duration 0.5 mins, half sine wave | |
| Vibration | 20G. Peak, 10~20KHz with 3 axis | |
| Power | ||
| Power Consumption (Active) | <8.2 W | |
| Power Consumption (Idle) | <5 mW | |
| Performance | ||
| Sequential Read/Write (max.) | 7400 | |
| Mean Time Between Failures | 3 Million Hours | |
| Data Retention | ||
| Data Retention | Per JEDEC 218 standards | |
| Technology | ||
| Power Failure Protection | No | |
| DRAM Cache | Yes | |
| Error Correction Codes | Up to 55 bits correctable per 512-bytes sector (BCH) |
Ordering Information
| Part Number | Capacity | Note |
| UBPAI03480HCNT1-HMX1-UGN | 480GB | |
| UBPAI03960HCNT1-IMX1-UGN | 960GB | |
| UBPAI0301T9CNT1-JMX1-UGN | 1.92TB | |
| UBPAI0303T8CNT1-KMX1-UGN | 3.84TB |
